Stainless Steel ISO 7241-1 Series B Coupler Manufacturer in India in custom size and thread
Carbon Steel Interchange Multi-Purpose Quick Disconnect Coupling is used in applications such as industrial hydraulic lines, food and chemical processing, water, and cooling plant, cleaning equipment, and steam and gases equipment. ISO B 7241 Quick Hydraulic Couplers are usually made up of brass and stainless steel, however, carbon steel couplings are also available. These couplings are also recommended to be used in machine tools, mobile hydraulics, electronic industry, aerospace, and automotive, Hydraulic ISO 7241-B Quick Couplers that belong to series B are interchangeable with any series B coupling. It has a self sealing poppet valve that seals very well under low and high pressure.
Quick Disconnect Couplings ISO 7241 - B are used on a large spectrum of hydraulic applications with difficult quality standards. They have a pressure rating of 3600 PSI and a 14500 burst rating. We produce and supply these couplers using high quality raw material. Couplings According To Iso 7241-1 Series B produced by us are manufactured using international standards and are passed through various tests and checks to confirm these standards. This helps us in catering to our international customers without any hesitation. Our customers are also satisfied with the product quality and competitive price provided by us.
Table of Content
Suppliers of Carbon Steel Interchange Multi-Purpose Quick Disconnect Coupling with Nitrile, Viton, EPDM Seal
What is ISO 7241 B Series Coupling ?
Couplings are used to connect 2 ends of a shaft together for various purposes. These couplings are available in a variety of materials and grades. One such grade is the ISO 7241 B Series Coupling. They are suitable for use in a fluid material. It requires both hands to be used while connecting and disconnecting the couplings. iso 7241 b series coupling manufacturers recommend the use of these couplings due to their high flow rate even after pressure drop. They are used in various industries such as food and beverage, life science, machinery construction, transportation, defense, and the process industry. Their operating temperature lies between - 15 degrees C and +20 degrees C.
Specification Format of ISO 7241-1 Series B Coupler
| BRAND NAME | TU-LOK |
| 7241 B SERIES COUPLING SIZE | 1/8" TO 4" |
| THREAD | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| CONNECTION | FEMALE TO FEMALE, FEMALE TO MALE, MALE TO MALE, MALE TO HOSE BARBED |
| PRESSURE RATING | UPTO 6000 PSI |
| 7241 B SERIES COUPLING MEDIA | HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL, FUEL, VACUUMS |
| MEDIA TEMPERATURE | (-40* C TO 300*C ) RANGE AS PER PRESSURE |
| BODY TYPE | BAR STOCK |
| 7241 B SERIES COUPLING SEAL | NITRILE, VITON, EPDM |
| EQUIVALENT BRANDS | PARKER, STUCCHI, HOLMBURY, HANSEN, FASTER, STAUFF |
| MATERIAL | SS 316, SS 304, BRASS, SS 316 TI, CS, COPPER, SUPER DUPLEX, DUPLEX, MONEL, INCONEL, SMO 254, HASTELLOY, TITANIUM, ALLOY 20, 904L & ALL OTHER ALLOYS |
Specialized in Hydraulic ISO 7241-B Quick Couplers in 1/8" TO 4" Size or as per needed
Hydraulic ISO 7241-B Quick Couplers Price list
| 7241 B Series Coupling Description | 7241 B Series Coupling Price list |
| 3/4" Male Coupler x 3/4" NPTF Female, Steel | $14.09 |
| 1" Male Coupler x 1" NPTF Female, Steel | $19.76 |
| ISO 7241 B Stainless Quick Couplers Coupling with Poppet Valve |
US $ 10.5-35.5 / Set |
| ISO 7241-B Pipe Quick Coupling Couplers Hose Connector (steel) | Min. Order: 10 Sets |
| ISO 7241 B Series Coupling | US $ 2-100 / Piece |
| Hydraulic Quick Coupling ISO 7241-B with Compatibllity Parker 60 Series | US $ 1.12-1.28 / Piece |
| ISO 7241 B 1/2" NPT Carbon Steel Hydraulic Quick Disconnect Coupling for Snow Plow and Tractor | US $ 4.5-6 / Piece |
| ISO 7241-B Qrc Open and Close Type Quick Coupling | US $ 2-10 / Set |
ISO 7241 B Series Coupling Manufacturer in india
ISO 7241 B SERIES COUPLING
ISO 7241-B SERIES QUICK COUPLING(BRASS)
ISO A Vs ISO 7241 B Series Coupling
- ISO 7241:2014 specifies the execution and measurement necessities for both Series A and Series B hydraulic quick Coupling.
- Whereas both series’ have comparable specialized points of interest and are in far reaching utilize, Series A is overwhelmingly utilized in Europe and is the favored choice for ranger service and agricultural equipment.
- fast couplers are overwhelmingly utilized within the chemical industry and in North America.
Features of ISO B 7241 Quick Couplers
- 7241 B Series Coupling have High flow rates against a low pressure drop
- Coupling system according to ISO 7241-1 series B
- 7241 B Series Coupling have Two-hand operation
ISO 7241 series B Interchange Quick Coupling Size
| Body Size (inch) | 7241 B Series Coupling Maximum Working Pressure (psi) | Application | Body Material | 7241 B Series Coupling Seal Material | Connection Type | Locking Sleeve |
|---|---|---|---|---|---|---|
| 1/8 | 3000 | General Purpose | Brass | Nitrile | NPTF | na |
| 1/8 | 3000 | General Purpose | Brass | Ethylene propylene | NPTF | na |
| 1/8 | 3000 | General Purpose | Brass | Fluorocarbon | NPTF | na |
| 1 1/2 | 1500 | General Purpose | Brass | Nitrile | NPTF | na |
| 1 1/2 | 1500 | General Purpose | Brass | Nitrile | NPTF | na |
| 1/4 | 3700 | General Purpose | Brass | Nitrile | NPTF | na |
| 1/4 | 3700 | General Purpose | Brass | Nitrile | NPTF | Yes |
| 1/4 | 3700 | Steam | Brass | Ethylene propylene | NPTF | na |
| 1/4 | 3700 | General Purpose | Brass | Ethylene propylene | NPTF | na |
| 1/4 | 3700 | General Purpose | Brass | Fluorocarbon | NPTF | na |
| 2 1/2 | 1200 | General Purpose | Brass | Nitrile | NPTF | na |
| 3/8 | 2700 | General Purpose | Brass | Nitrile | NPTF | na |
| 3/8 | 2700 | General Purpose | Brass | Ethylene propylene | NPTF | na |
| 3/8 | 2700 | General Purpose | Brass | Fluorocarbon | NPTF | na |
| 1/2 | 3500 | General Purpose | Brass | Nitrile | NPTF | na |
| 1/2 | 3500 | Steam | Brass | Ethylene propylene | NPTF | na |
| 1/2 | 3500 | General Purpose | Brass | Ethylene propylene | NPTF | na |
| 1/2 | 3500 | General Purpose | Brass | Fluorocarbon | NPTF | na |
| 3/4 | 2200 | General Purpose | Brass | Nitrile | NPTF | na |
| 3/4 | 2200 | Steam | Brass | Ethylene propylene | NPTF | na |
| 3/4 | 2200 | General Purpose | Brass | Ethylene propylene | NPTF | na |
| 3/4 | 2200 | General Purpose | Brass | Fluorocarbon | NPTF | na |
| 1 | 1500 | General Purpose | Brass | Nitrile | NPTF | na |
| 1 | 1500 | Steam | Brass | Ethylene propylene | NPTF | na |
| 1 | 1500 | General Purpose | Brass | Ethylene propylene | NPTF | na |
| 1 | 1500 | General Purpose | Brass | Fluorocarbon | NPTF | na |
| 1/8 | 5000 | General Purpose | Steel | Nitrile | NPTF | na |
| 1/8 | 5000 | General Purpose | Steel | Nitrile | ORB | na |
| 1/8 | 5000 | General Purpose | Steel | Ethylene propylene | NPTF | na |
| 1/8 | 5000 | General Purpose | Steel | Fluorocarbon | NPTF | na |
| 1 1/2 | 1500 | General Purpose | Steel | Nitrile | ORB | na |
| 1 1/2 | 1500 | General Purpose | Steel | Nitrile | ORB | na |
| 1 1/2 | 1500 | General Purpose | Steel | Nitrile | NPTF | na |
| 1 1/2 | 1500 | General Purpose | Steel | Nitrile | NPTF | na |
| 1/4 | 5000 | General Purpose | Steel | Nitrile | NPTF | na |
| 1/4 | 5000 | Pydraul 10E compatible | Steel | Ethylene propylene | ORB | na |
Application of Quick Disconnect Coupling ISO 7241 - B
- 7241 B Series Coupling use in Water and coolant lines
- Food and chemical processing
- 7241 B Series Coupling use in Industrial hydraulic lines
- Steam and some gases
- 7241 B Series Coupling use in Cleaning equipment
Find your choice of sizes from our Quick Disconnect Coupling ISO 7241 - B stock, available in Female To Female, Female To Male, Male To Male, Male To Hose Barbed Connection
ISO-7241-b Series Quick Release Hydraulic Coupling Dimensions
Technica data of Coupling According To ISO 7241-1 Series B
ISO 7241-1 Series B Coupler Sets Pressure & Flow Ratings
Body Size |
7241 B Series Coupling Maximum Working Pressure |
7241 B Series Coupling Maximum Working Pressure |
1/4" |
1,000 |
5,000 |
3/8" |
1,000 |
4,000 |
1/2" |
1,000 |
4,000 |
3/4" |
1,500 |
2,500 |
1" |
1,000 |
2,000 |
Get complete information about Coupling According To ISO 7241-1 Series B online here
Rated Pressure Chart of Hydraulic Quick Coupling ISO 7241-B

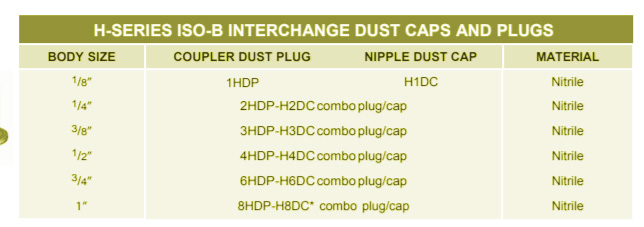

H-series ISO-b Interchange Dust Caps And Plugs
H-series ISO-b Interchange (Coupler)
Best Material supplied in following projects
| Philippines, Chile, Iran, Canada | Iso 7241-1 Series B Male Coupling (Steel) |
| Europe, United Arab Emirates (UAE), Romania, Norway | Iso 7241-1 Series B Male Coupling (Brass) |
| Russia, Sweden, Netherlands, Malaysia | ISO 7241-1 Series B Female Coupling (Steel) |
| Egypt, Malaysia, Mexico | ISO 7241-B 1/4" NPT Quick Disconnect Hydraulic Coupling (2 Set) |
| NY 12203 (USA), Singapore, United Kingdom -UK, Malaysia | ISO B Female Coupling Dust Plug |
| Dammam -KSA, UK, Philippines, Poland | ISO B Female Coupling x FP (Brass) |
| Malaysia, China, Bangladesh, Colombia | ISO B Male Coupling x FP (Brass) |
| Singapore, Qatar, Malaysia, Europe | ISO B Female Coupler x FP (Steel) |
| Malaysia, Japan, Czechia, Thailand | ISO B Male Coupler Dust Cap |
| South Africa, Philippines, Kuwait, Taiwan | ISO B Male Coupler x FP (Steel) |
| Bahrain, Malaysia, Singapore, South Korea | ISO-B (7241-B) Quick Coupler Set (Steel) SAE Thread |
