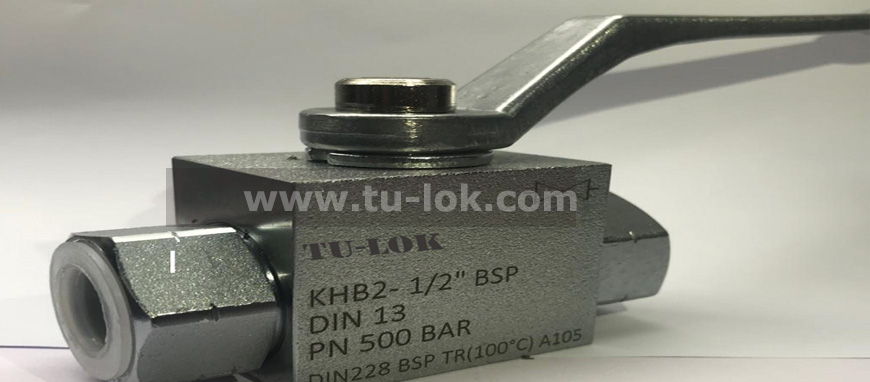

Carbon Steel Ball Valve
VALVE SIZE 1/8" TO 2" / 6 MM TO 50 MM
THREAD NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION 2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA  HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE (-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE BAR STOCK
BRAND NAME TU-LOK
PACKING DETAILS BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
APPLICATION MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE ,  PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,



Carbon, Max %

0.026

Manganese, Max %

0

Phosphorus, Max %

0.04

Sulphur, Max %

0.05

Silicon, Max %

0.4

Copper, Max %

0.20



KEY PHYSICAL PROPERTIES
CAST
CARBON STEEL
FORGED
0.30/0.35 C Max
A216-WCB
A105
0.25 C Max
A216-WCC
LOW TEMPERATURE STEEL
0.25/0.30 C Max
A352-LCB
A350-LF2
0.5 Mo
A352-LC1
2.5 Ni
A352-LC2
3.5 Ni
A352-LC3
C-MN-Si (0.25 Max)
A352-LCC
A350-LF3
C-MN-Si-V (1.15~1.50 Mn)
A350-LF6



  • Unibody Construction
  • Blowout-Proof Stem Design
  • RTFE Seats and Seals
  • Built Tough in the USA



  • Stainless Steel Ball and Stem (OA)
  • Latching Lockout Handle Kit (OP)
  • “Gull Wing” Tee Handle (OE)
  • Oval Handle (OQ)
